Recommended Fluids and Lubricants
Fluids and lubricants identified below by name, part number, or specification can be obtained from your dealer.
Usage | Fluid/Lubricant |
Engine Oil | Use only engine oil meeting the dexos1™ specification of the proper SAE viscosity grade. Look for the dexos1 approved logo for GM approved engine oil. See Engine Oil on page 10-8. |
Engine Coolant | 50/50 mixture of clean, drinkable water and use only DEX-COOL® Coolant.
See Engine Coolant on page 10-14. |
Hydraulic Brake/Clutch System | DOT 4 Hydraulic Brake Fluid (GM Part No. 19299570, in Canada 19299571). |
Windshield Washer | Automotive windshield washer fluid that meets regional freeze protection requirements. |
Automatic Transmission | ACDelco CVT Fluid (Part No. 19260800, in Canada 19299096). |
Manual Transmission | 75W-85 Manual Transmission Fluid (GM Part No. 88862472, in Canada 88862473). |
Hood Latch Assembly, Secondary Latch, Pivots, Spring Anchor, and Release Pawl | Lubriplate Lubricant Aerosol (GM Part No. 89021668, in Canada 89021674) or lubricant meeting requirements of NLGI #2, Category LB or GC-LB. |
Key Lock Cylinders, Hood and Door Hinges | Multi-Purpose Lubricant, Superlube (GM Part No. 12346241, in Canada 10953474). |
Weatherstrip Conditioning | Weatherstrip Lubricant (GM Part No. 3634770, in Canada 10953518) or Dielectric Silicone Grease (GM Part No. 12345579, in Canada 10953481). |

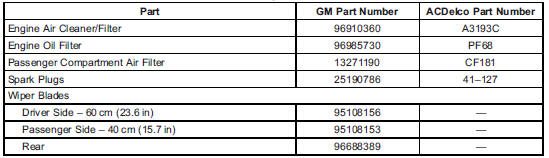

Maintenance Replacement Parts
Replacement parts identified below by name, part number, or specification can be obtained from your dealer.
Maintenance Replacement Parts

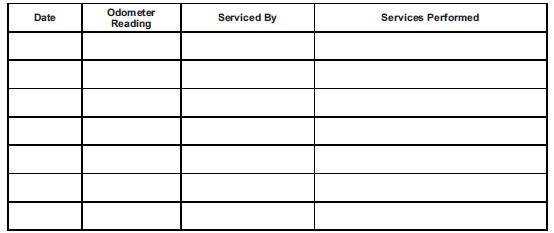

Maintenance Records
After the scheduled services are performed, record the date, odometer reading, who performed the service, and the type of services performed in the boxes provided. Retain all maintenance receipts.
Pictures and Movies (Picture System)
The infotainment system can view picture files stored on a USB storage device
and devices that support Media Transfer Protocol (MTP).
Picture System Information
Caution for Using Picture Files
File size:
JPG: Within 64 to 5,000 pixels (Width) and 64 to 5,000 pixels (Height).
BMP, PNG, GIF ...
Connecting a USB Storage Device or iPod/iPhone
To connect a USB storage device, connect the device to the USB port.
To connect an iPod/iPhone, connect one end of the device’s cable to the iPod/iPhone
and the other end to the USB port.
The iPod/iPhone charges while it is connected to the vehicle if the vehicle is
in ACC/ACCESSORY, ON/RUN. S ...
Dinghy Towing (with Manual Transmission)
To dinghy tow the vehicle from the front with all four wheels on the ground:
Position the vehicle to tow and then secure it to the towing vehicle.
Shift the transmission to Neutral.
Turn the ignition to ACC/ ACCESSORY.
Caution
If 113 km/h (70 mph) is exceeded while towing the vehicle ...
